Introduction
● Elemental analysis: F-U; concentration range: ppm~100%
● Its detector and X-ray tube are placed above samples, which spares maintenance for damage due to fall of samples.
● Servomotor-driven sample feeding system, ensuring the consistency of good performance.
● Lossless analysis extends the life of samples.
● Auto-mechatronic design; user-friendly operating interface.
● Eight samples can be placed simultaneously and analyzed one by one automatically.
● X-ray radiation is shielded
● Temperature control system enhances its adaptability to temperature fluctuation of working environment.
● Samples will be melted or pressed based on your analytical needs. Custom SDD detector with high count rate and super-thin window can make over 10 times deeper and fast analysis for light elements including Na, with high accuracy and stability.
● User-friendly operational software with multiple language versions under WINDOWS operating system.
● A flexible analytical software supports elemental display of all kinds. The display of the name and order of elemental oxides can also be made happen through this software.
● A built-in parameters can help the making of your own work curves much easier.

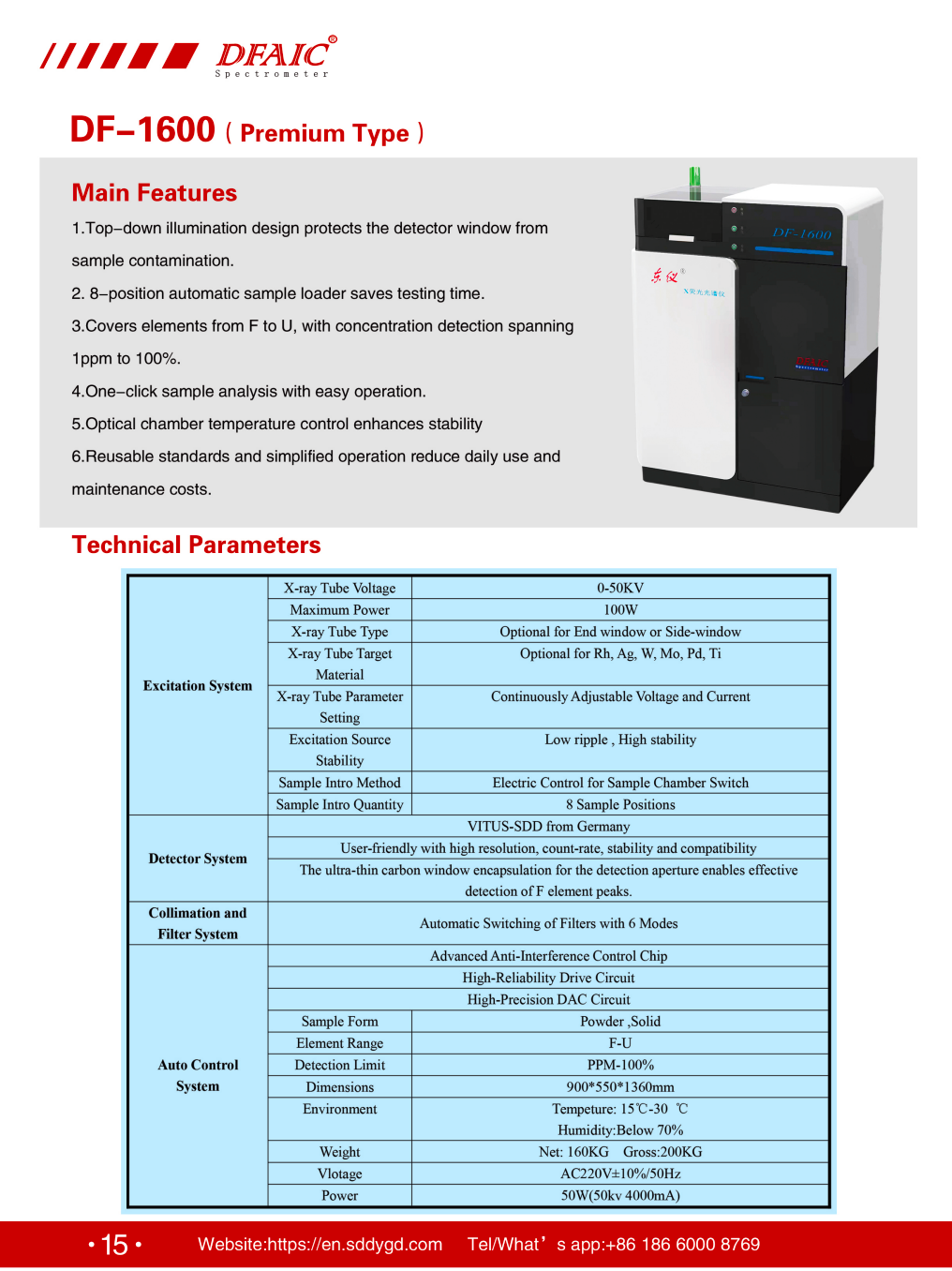

Specifications
| excitation system | voltage | 0-50kV continuously adjustable |
| max power | 100W | |
X-ray tube type | Side-window and end-window | |
| target material | Rh, Ag, W, Mo, Pd, Ti,etc. | |
| parameter settings | integrated and adjustable filament power with consistent and adjustable voltage and current; protection for over electrical force and current | |
excitation source | low ripple , high stability | |
| sample feeding system | method | servo motors and stepper motors |
| quantity | 8 samples can be placed at one time and analyzed one by on | |
| protection | a special protection device is in place to ensure safety | |
| detection system | the latest VITUS-SDD detector from Germany , the window is resistant to acid and alkali corrosion (Electric refrigeration, electric operation) | |
user-friendly with high resolution, high count-rate, high stability and high compatibility | ||
Ultra-thin carbon window detection window package (1 μmC or 0.15μmC with support) for effective detection of fluorine peaks | ||
auto light collimation and filtration system | shaft-driven fan embedded with six filters | |
auto control system | advanced anti-interference chip | |
| highly-reliable driver circuit | ||
| highly-precise A/D converter | ||
| others | application | Refractory materials, cement, bauxite, white corundum, mullite, kaolin, dolomite, quartz sand, glass, ceramics and raw materials, coating detection, cement and auxiliary materials, limestone, thermal insulation materials, pellets, titanium dioxide, etc. |
| sample state | powder, solid, liquid | |
| advantages | high stability, low LOD, full wavelength and lossless analysis | |
| dimensions(mm) | 900*525*1360 | |
environmental requirement | T 5℃-30℃ H 20%-80% | |
| weight | 160KG(net) 200KG(gross) | |
| V/F | AC220V±10%/50Hz | |
| power | 50W(50kV, 4000mA) | |
