DF-410 CCD Spark OES

Introduction

1) Czerny-Turner optical system is applied for a better plane CCD collection for all elemental wavelength that falls into 140-750nm.

2) Self-developed DF-IV collection device is able to collect all elemental wavelength between 140nm and 750nm.

3) Several matrices can be analyzed such as Fe, Cu, Al, Zn, Ni, Sn, Ti, Mg, etc.

4) Module design for independent light collection, data processing and data optimization. With the help of high-performance ARM processor and real-time operational system, analytical time is largely shortened and accuracy is further improved.

5) A highly-precise thermostatic system improves the energy efficiency to a great extent. The temperature fluctuation range of ±0.2℃ makes the DF-410 perform more stable.

6) The DF II-E digital-controlled light source broadens the elemental analytical range which covers trace elements, macro elements and elements with super high content.

7) Plane grating allows smaller number of CCD, further improving the accuracy and stability. It also occupies smaller space and makes set-up and movement a lot easier.

8) A whole new gas way; spark stand with cleaning function; adjustable master-slave gas ways equipped with a sealing device which prevents argon leakage; Quicker argon fulfillment.

9) The multipurpose operational software can meet various needs by displaying elemental data in a flexible way and supporting various printing formats.

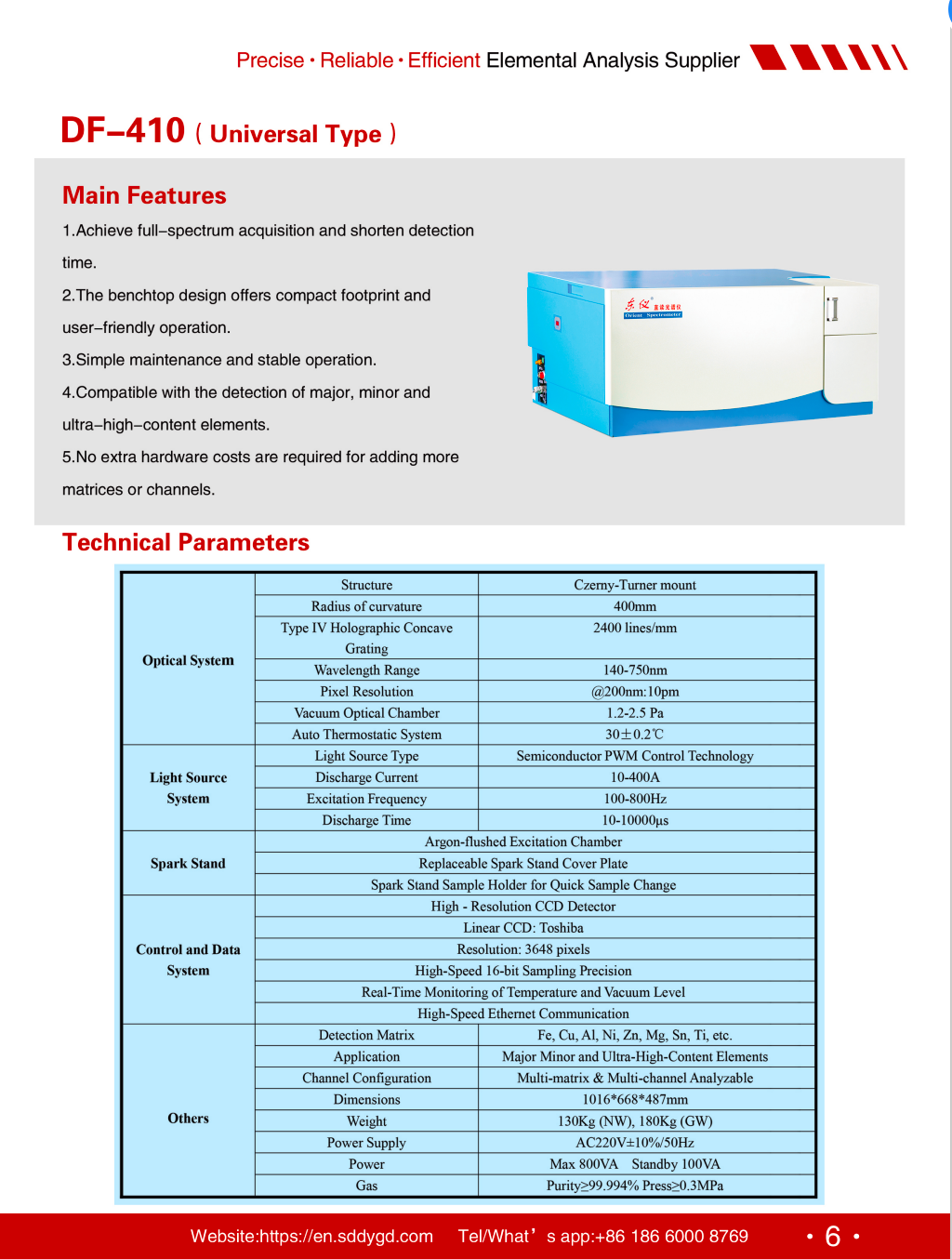

Specifications
