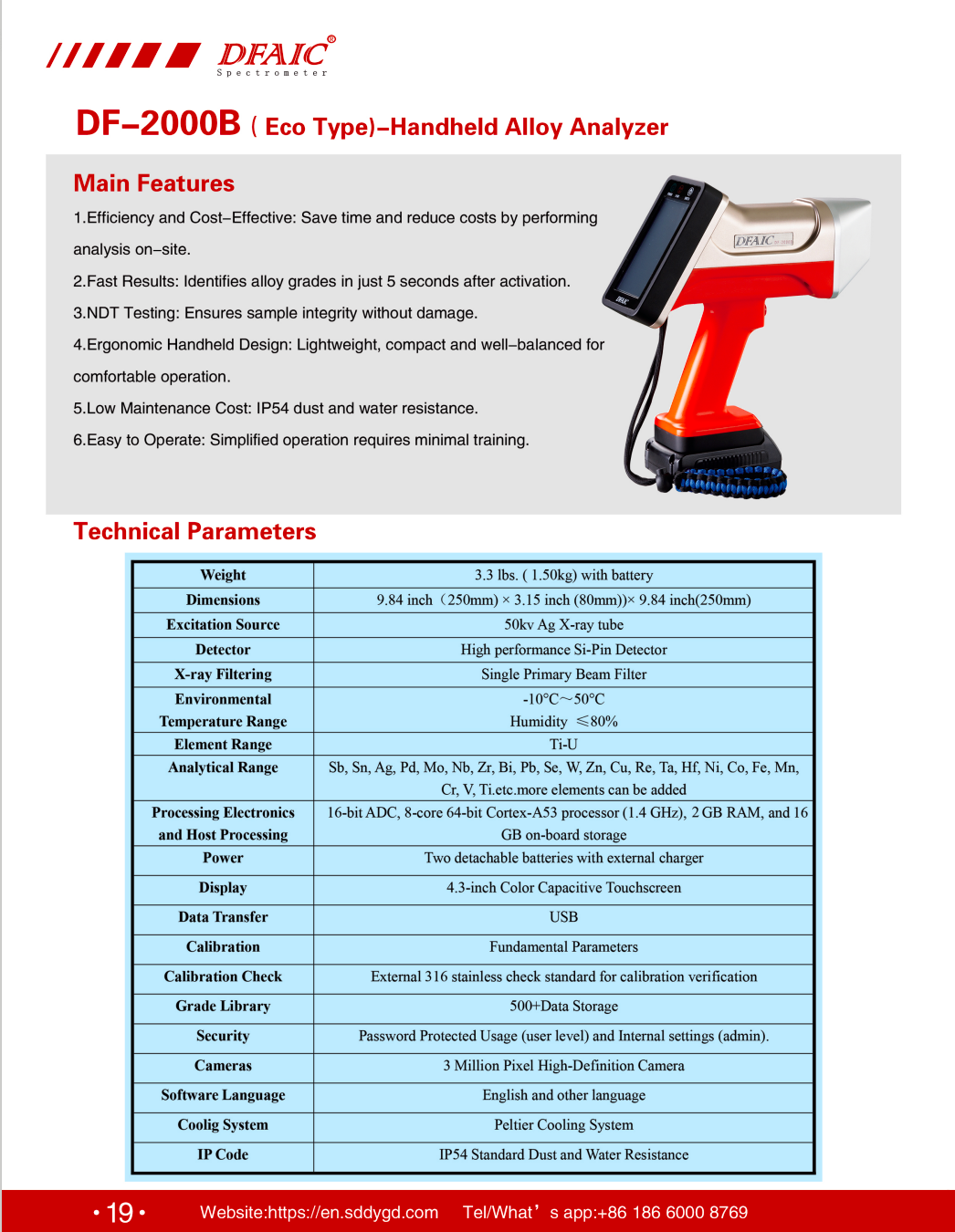

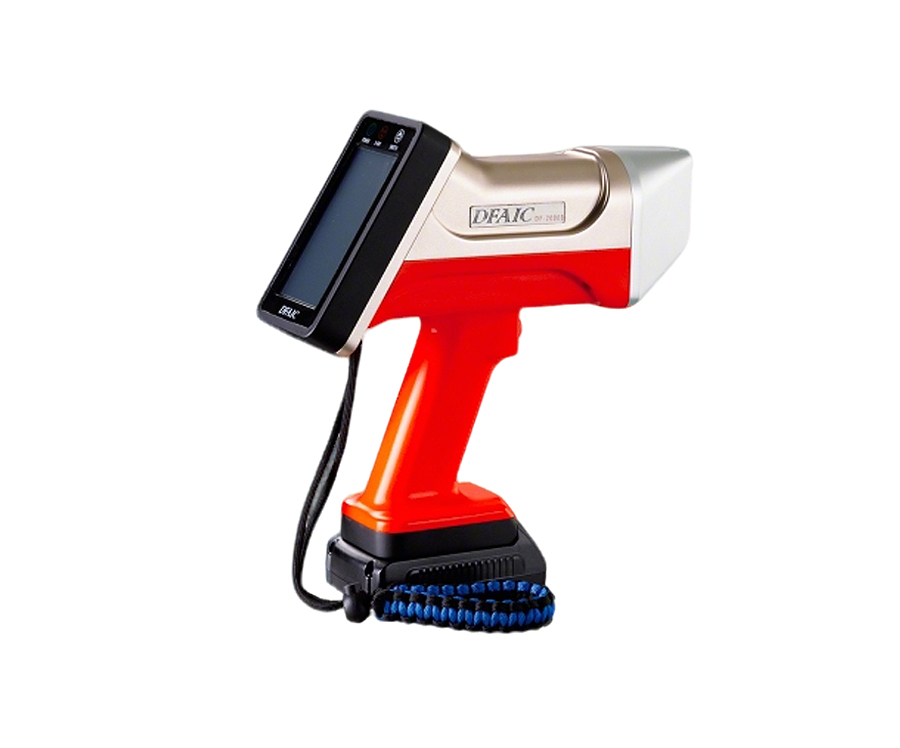

DF2000B

Classification: Handheld XRF Analyzer

Data Download

Details

Main Features

1.Efficiency and Cost-Effective: Save time and reduce costs by performinganalysis on-site.

2.Fast Results: ldentifies alloy grades in just 5 seconds after activation.

3.NDT Testing: Ensures sample integrity without damage.

4.Ergonomic Handheld Design: Lightweight, compact and well-balanced forcomfortable operation.

5.Low Maintenance Cost: lP54 dust and water resistance.

6.Easy to Operate: Simplified operation requires minimal training.

Technical Parameters

Weight	3.3 lbs. (1.50kg) with battery
Dimensions	9.84 inch (250mm) × 3.15 inch (80mm) × 9.84 inch (250mm)
Excitation Source	50kv Ag X-ray tube
Detector	High performance Si-Pin Detector
X-ray Filtering	Single Primary Beam Filter
Environmental Temperature Range	-10°C～50°C Humidity ≤80%
Element Range	Ti-U
Analytical Range	Sb, Sn, Ag, Pd, Mo, Nb, Zr, Bi, Pb, Se, W, Zn, Cu, Re, Ta, Hf, Ni, Co, Fe, Mn, Cr, V, Ti, etc. (more elements can be added)
Processing Electronics and Host Processing	16-bit ADC, 8-core 64-bit Cortex-A53 processor (1.4 GHz), 2 GB RAM, and 16 GB on-board storage
Power	Two detachable batteries with external charger
Display	4.3-inch Color Capacitive Touchscreen
Data Transfer	USB
Calibration	Fundamental Parameters
Calibration Check	External 316 stainless check standard for calibration verification
Grade Library	500+ Data Storage
Security	Password Protected Usage (user level) and Internal settings (admin)
Cameras	3 Million Pixel High-Definition Camera
Software Language	English and other languages
Cooling System	Peltier Cooling System
IP Code	IP54 Standard Dust and Water Resistance
