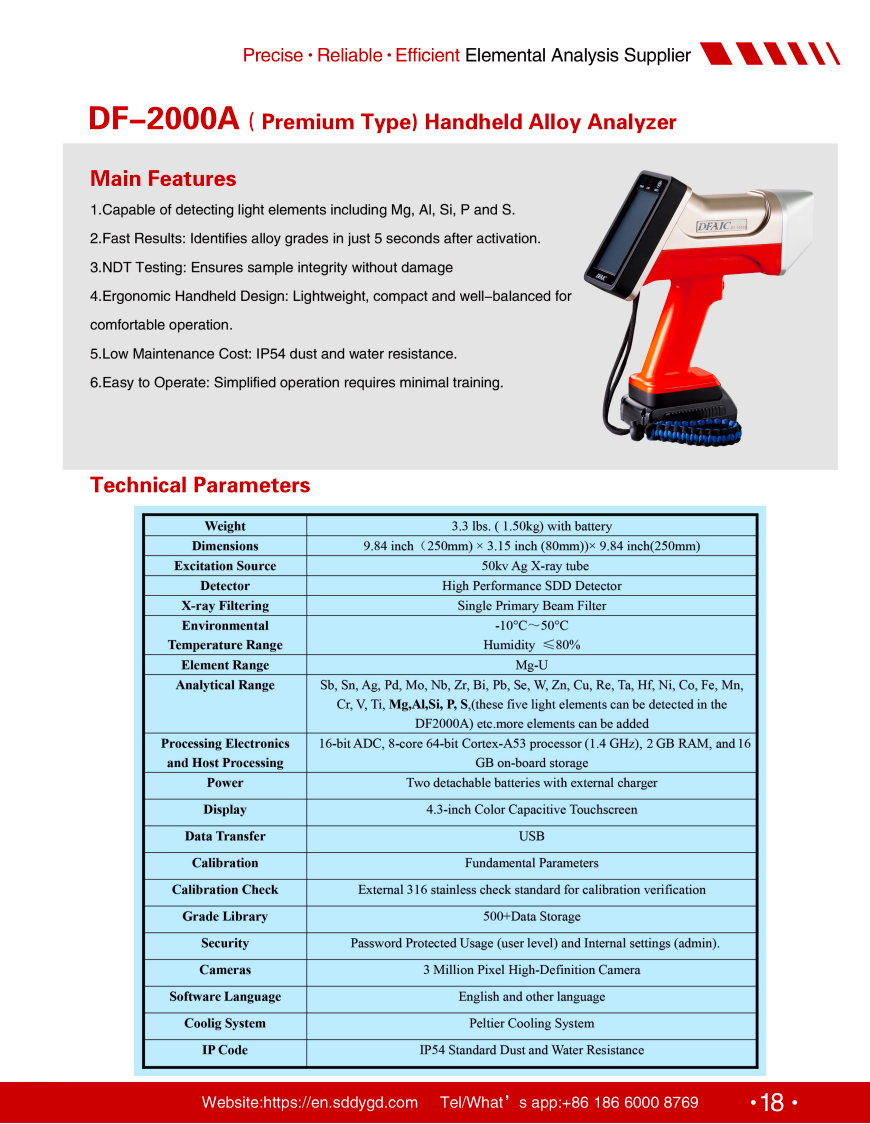

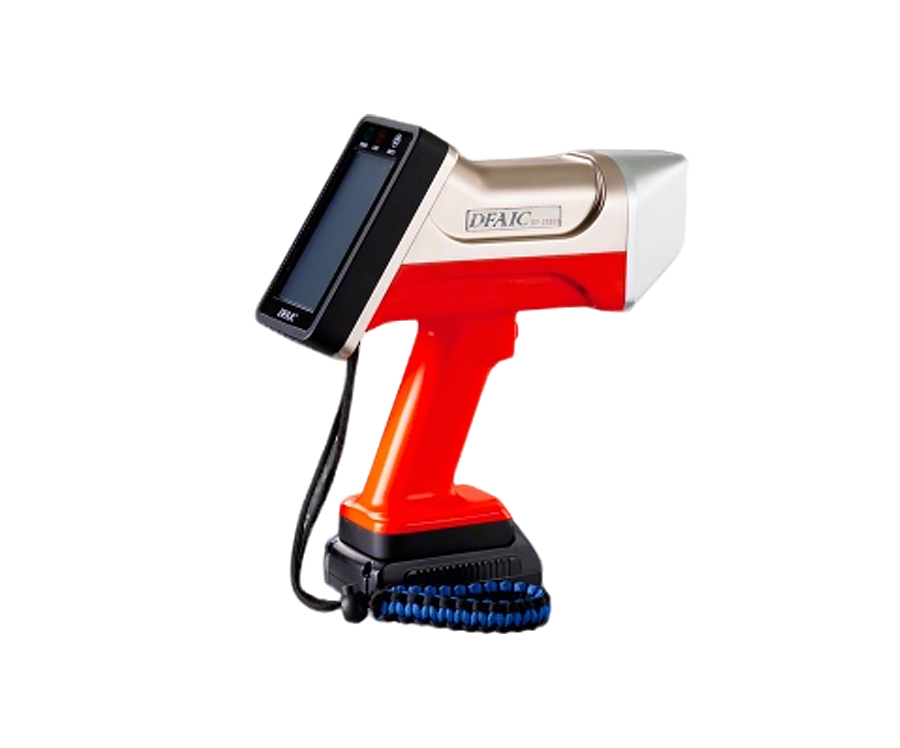

DF2000A

Classification: Handheld XRF Analyzer

Data Download

Details

Main Features

1.Capable of detecting light elements including Mg, Al, Si, P and S.

2.Fast Results: ldentifies alloy grades in just 5 seconds after activation.

3.NDT Testing: Ensures sample integrity without damage

4.Ergonomic Handheld Design: Lightweight, compact and well-balanced forcomfortable operation.

5.Low Maintenance Cost: lP54 dust and water resistance.

6.Easy to Operate: Simplified operation requires minimal training.

Technical Parameters

Weight	3.3 lbs. (1.50kg) with battery
Dimensions	9.84 inch (250mm) × 3.15 inch (80mm) × 9.84 inch (250mm)
Excitation Source	50kv Ag X-ray tube
Detector	High Performance SDD Detector
X-ray Filtering	Single Primary Beam Filter
Environmental Temperature Range	-10°C～50°C Humidity ≤80%
Element Range	Mg-U
Analytical Range	Sb, Sn, Ag, Pd, Mo, Nb, Zr, Bi, Pb, Se, W, Zn, Cu, Re, Ta, Hf, Ni, Co, Fe, Mn, Cr, V, Ti, Mg, Al, Si, P, S (these five light elements can be detected in the DF2000A) etc. more elements can be added
Processing Electronics and Host Processing	16-bit ADC, 8-core 64-bit Cortex-A53 processor (1.4 GHz), 2 GB RAM, and 16 GB on-board storage
Power	Two detachable batteries with external charger
Display	4.3-inch Color Capacitive Touchscreen
Data Transfer	USB
Calibration	Fundamental Parameters
Calibration Check	External 316 stainless check standard for calibration verification
Grade Library	500+ Data Storage
Security	Password Protected Usage (user level) and Internal settings (admin)
Cameras	3 Million Pixel High-Definition Camera
Software Language	English and other languages
Cooling System	Peltier Cooling System
IP Code	IP54 Standard Dust and Water Resistance
