DF-1800 EDXRF

Instrument introduction

1.Analysis element range F-U;Concentration range: ppm ~ 100%;

2. The detector and X-ray tube are located above the sample to avoid damage and contamination of the detector window caused by sample falling, easy operation and no maintenance;

3. Full intelligent automatic sampling system of robot arm, high space utilization rate, high repeated positioning accuracy, collision detection function to ensure excellent repeatability;

4. Electric clamp clamp sampling stability, the maximum clamping force 18N;

5. Non-destructive analysis of the sample, less sample consumption, repeatable analysis and detection;

6 .Unattended analysis and overnight analysis, automatic mechatronics design, simple operation interface;

7. 36 The sample has automatic sampling, eccentric spin, automatic detection function, larger detection area, and can eliminate particle error and uneven error to the maximum extent;

8.Any urgent samples can be prioritized for analysis at any time;

9 .Shielding X-ray radiation to human body, visual intelligent visualization, intelligent self-test;

10. Excellent temperature control system, enhance the adaptability of the instrument to the use of ambient temperature changes;

11. The samples are mainly treated by two sample processing methods: melting method and pressing method, and the most suitable sample treatment plan is formulated for different types of samples;

12. Custom FAST-SDD detector, the detector has ultra-thin window and ultra-high count rate, the detection ability of sodium and other light elements increased by more

than 10 times compared to FAST analysis speed, high accuracy, good stability, low failure rate;

13. Multi-language operating software under windows system, convenient for domestic and foreign users;

14. Analysis software data display fast, can set a variety of pseudo-element display, according to user needs to set the element or oxide name and display order;

15. Built-in parameter design, easy to operate when making working curves;

16. No chemical reagents, pollution-free operation.

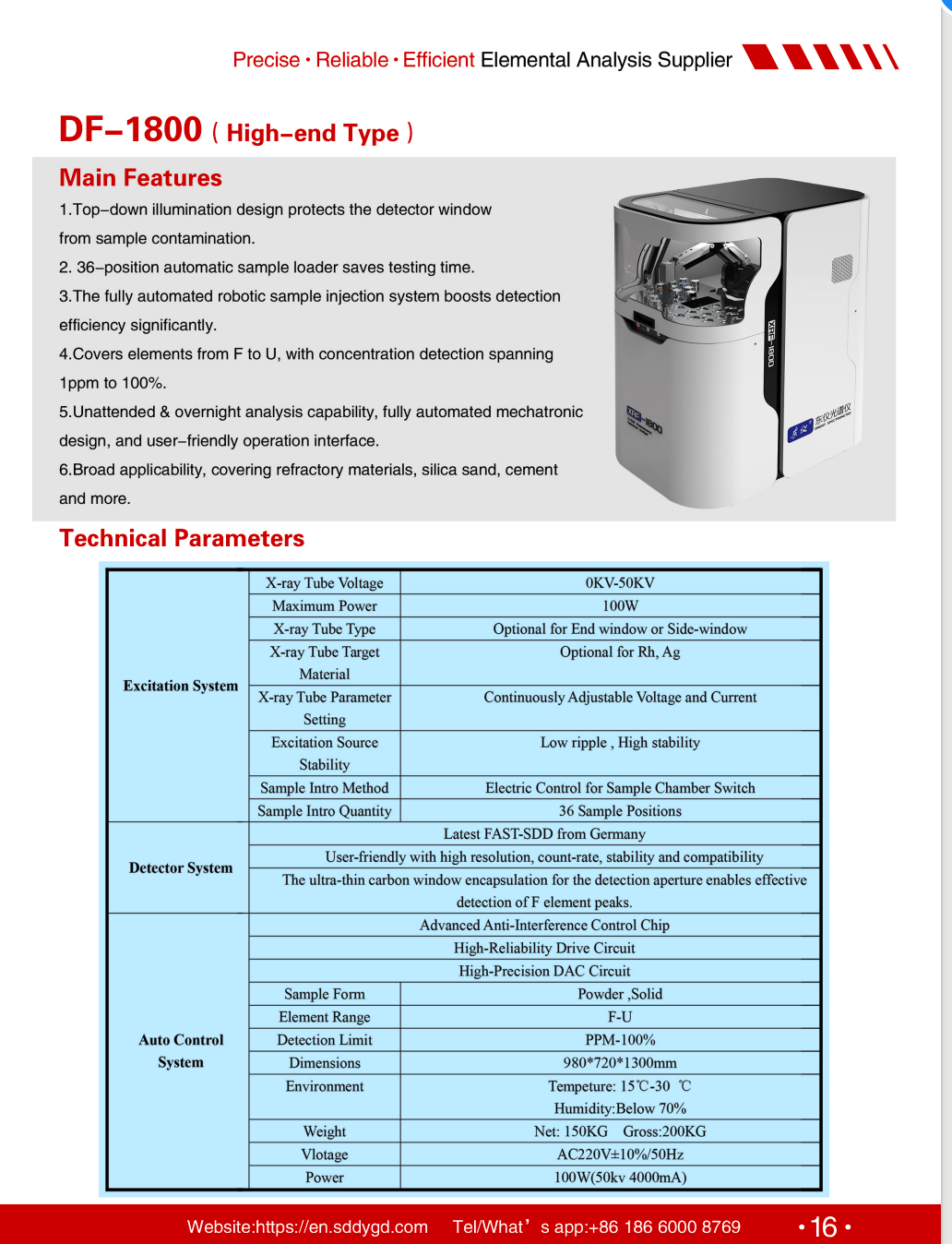

Specifications
