Introduction
1)Elemental analysis: Na-U; concentration range: ppm~99.99%.
2)Lossless analysis extends the life of samples.
3)Auto-mechatronic design; user-friendly operating interface.
4)Temperature control system enhances its adaptability to temperature fluctuation of working environment.
5)Samples will be melted or pressed based on your analytical needs.
6)Solid FAST-SDD detector enables faster analysis, accurate results and high stability.
7)User-friendly operational software with multiple language versions under WINDOWS operating system. Relevant help menus are available for different operators for different purposes.
8)A built-in parameters can help the making of your own work curves much easier.

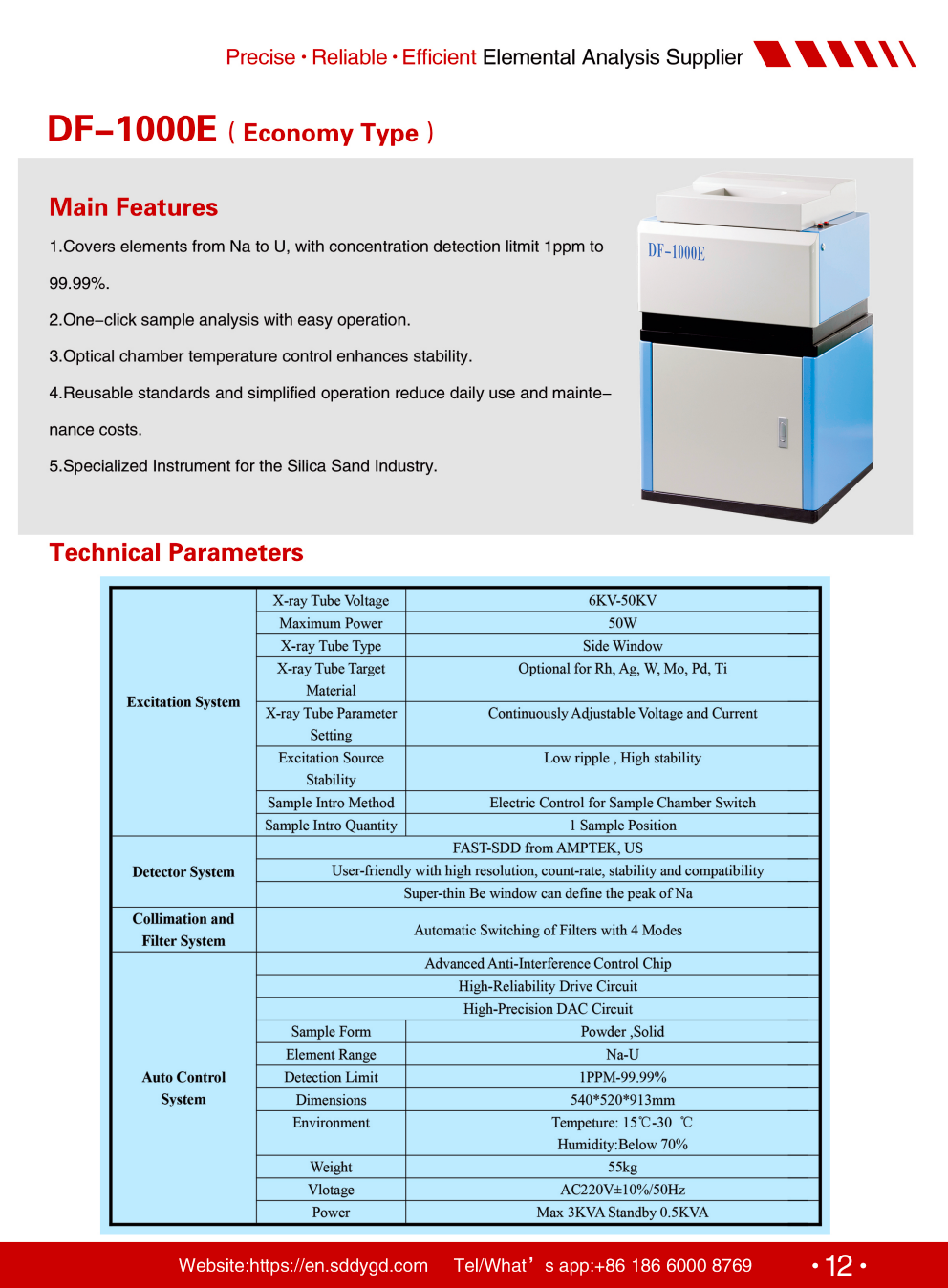

Specifications
| excitation system | voltage | 6kV-50kV |
| max power | 50W | |
X-ray tube type | Side-window | |
| target material | Rh, Ag, W, Mo, Pd, Ti,etc. | |
| parameter settings | integrated and adjustable filament power with consistent and adjustable voltage and current; protection for over electrical force and current | |
excitation source | low ripple , high stability | |
| sample feeding system | method | auto control the switch of sample chamber |
| quantity | samples are placed one at a time | |
| protection | a special protection device is in place to ensure safety | |
| detection system | the latest FAST-SDD detector from AMPTEK, US | |
user-friendly with high resolution, count-rate, stability and compatibility | ||
super-thin Be window that can define the peak of Na | ||
auto light collimation and filtration system | shaft-driven fan embedded with four filters | |
auto control system | advanced anti-jamming chip | |
| highly-reliable driver circuit | ||
| highly-precise A/D converter | ||
| others | application | refractory materials, cement, glass, nonferrous metals, steel smelting, thermal insulation material, ceramics, metals and non-metal ores |
| sample state | powder, solid, liquid | |
| advantages | high stability, low LOD, full wavelength and lossless analysis | |
| dimensions(mm) | 540*530*910 | |
environmental requirement | T 5℃-30℃ H 20%-80% | |
| weight | 55KG(net) 85KG(gross) | |
| V/F | AC220V±10%/50Hz | |
| power | max 3KVA standby 0.5KVA | |
